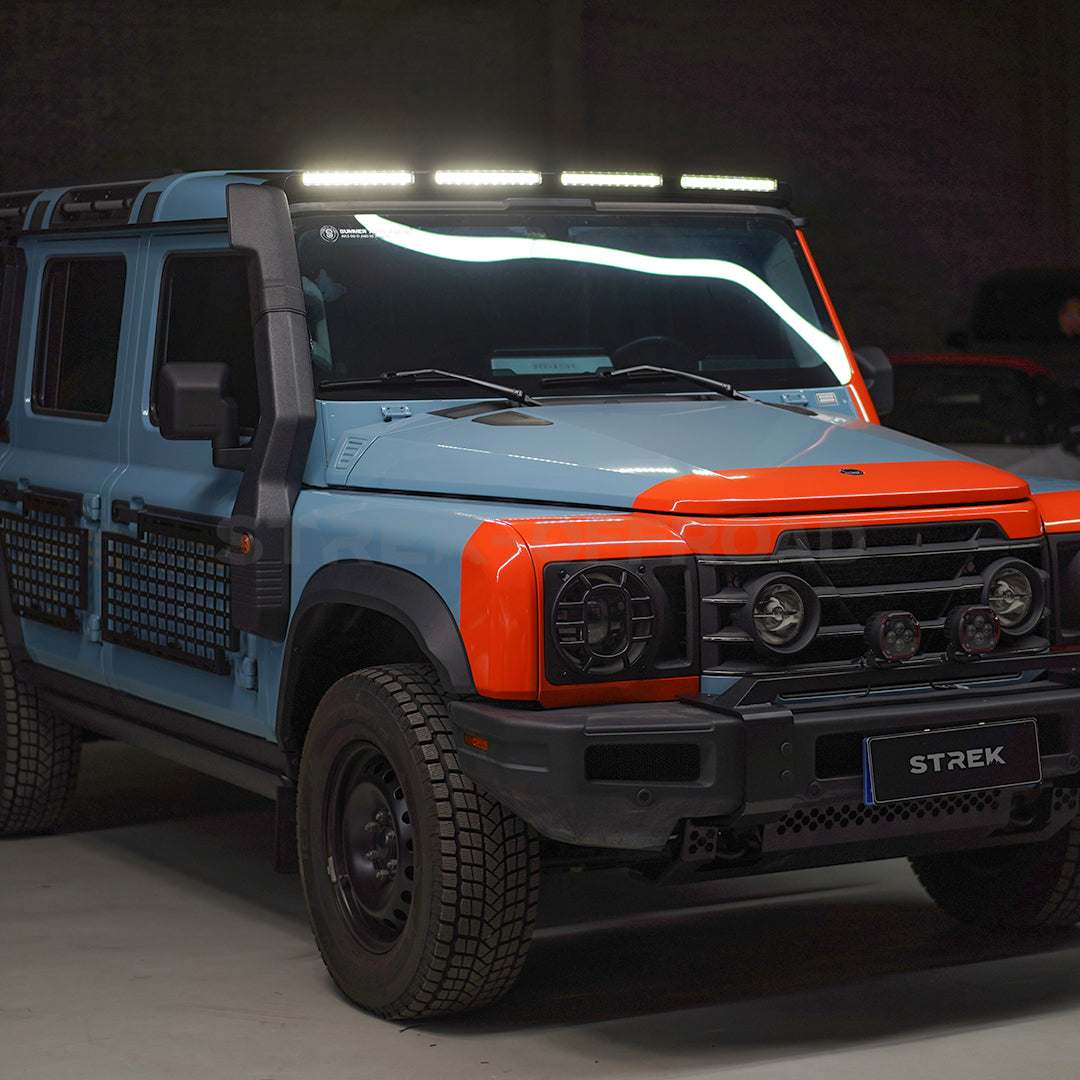

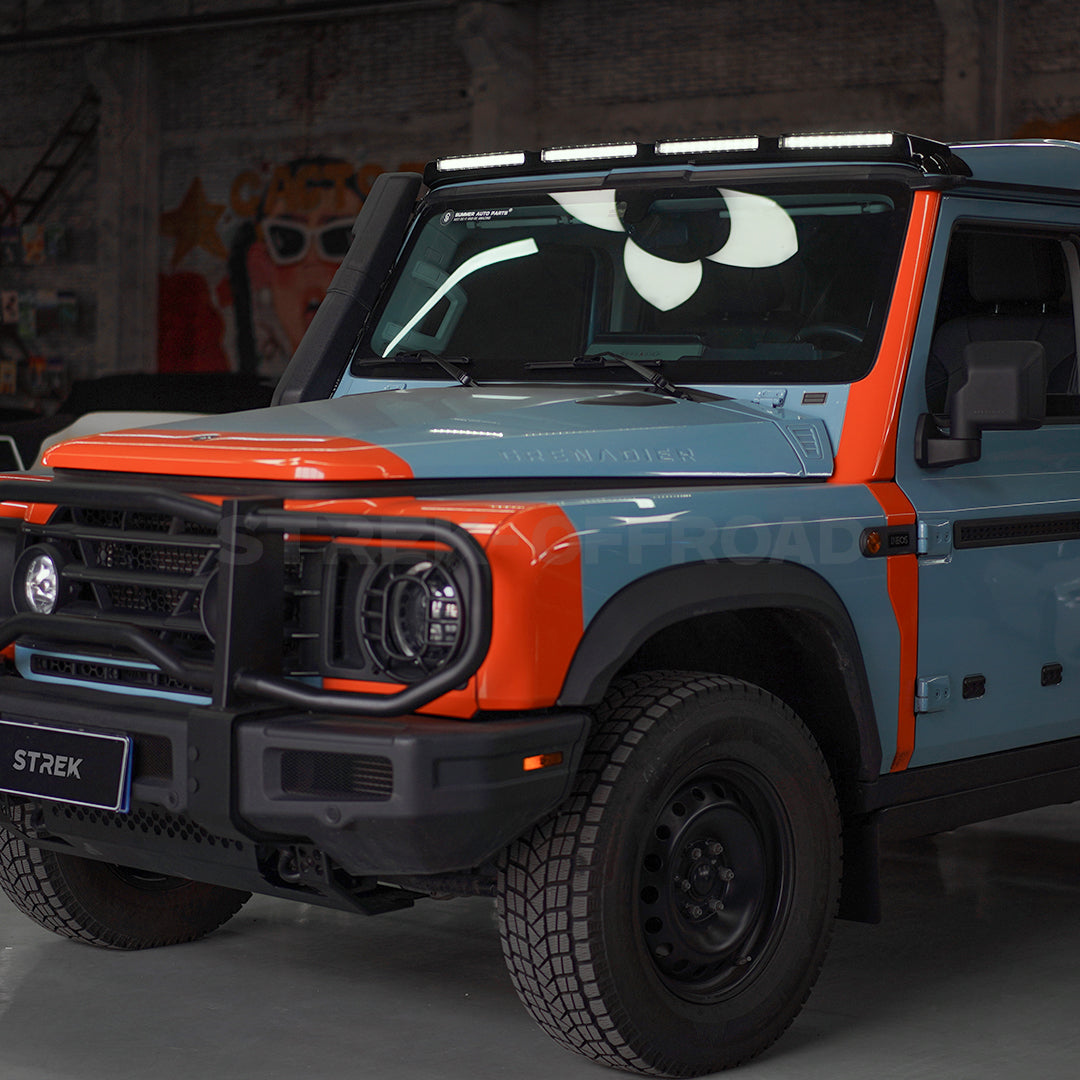

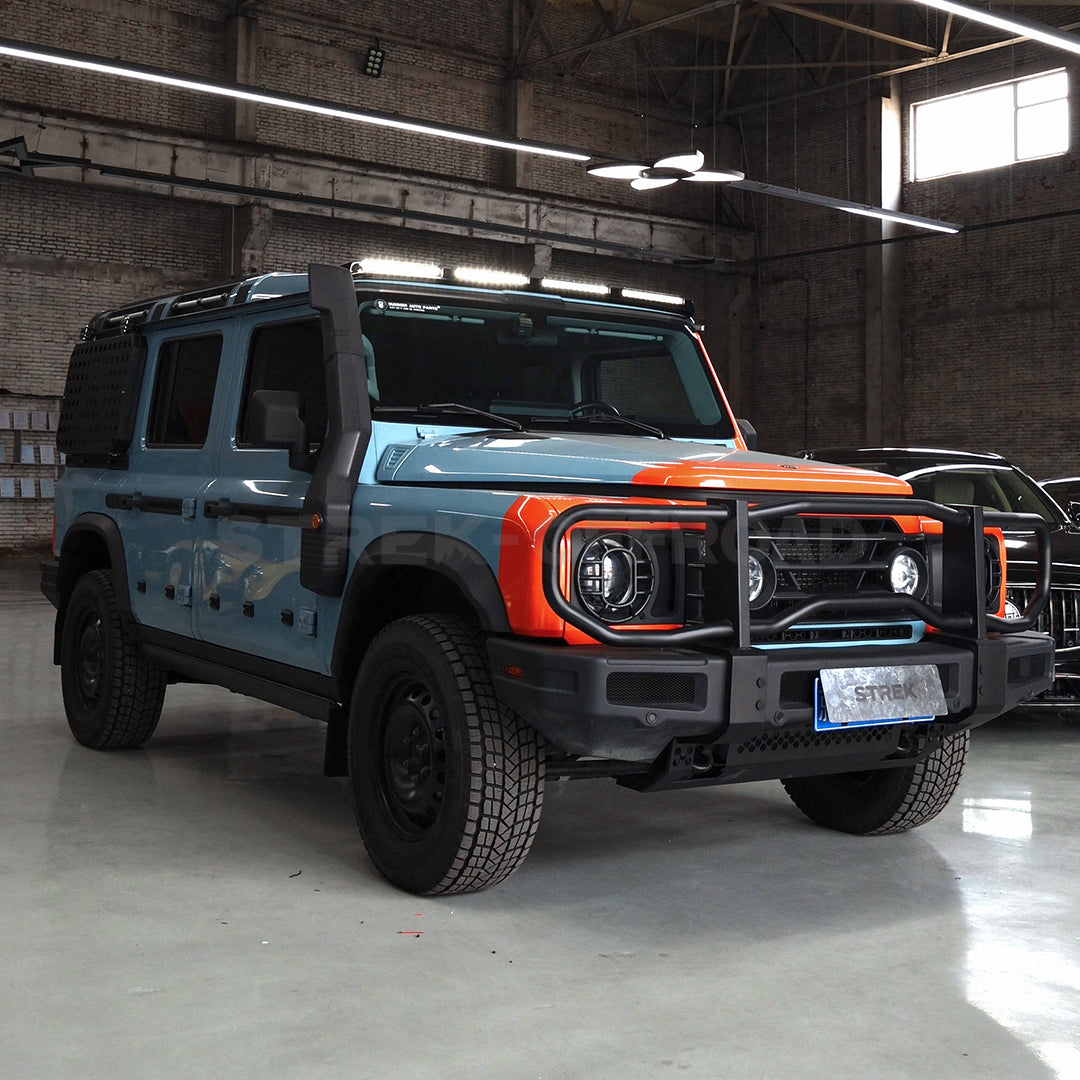

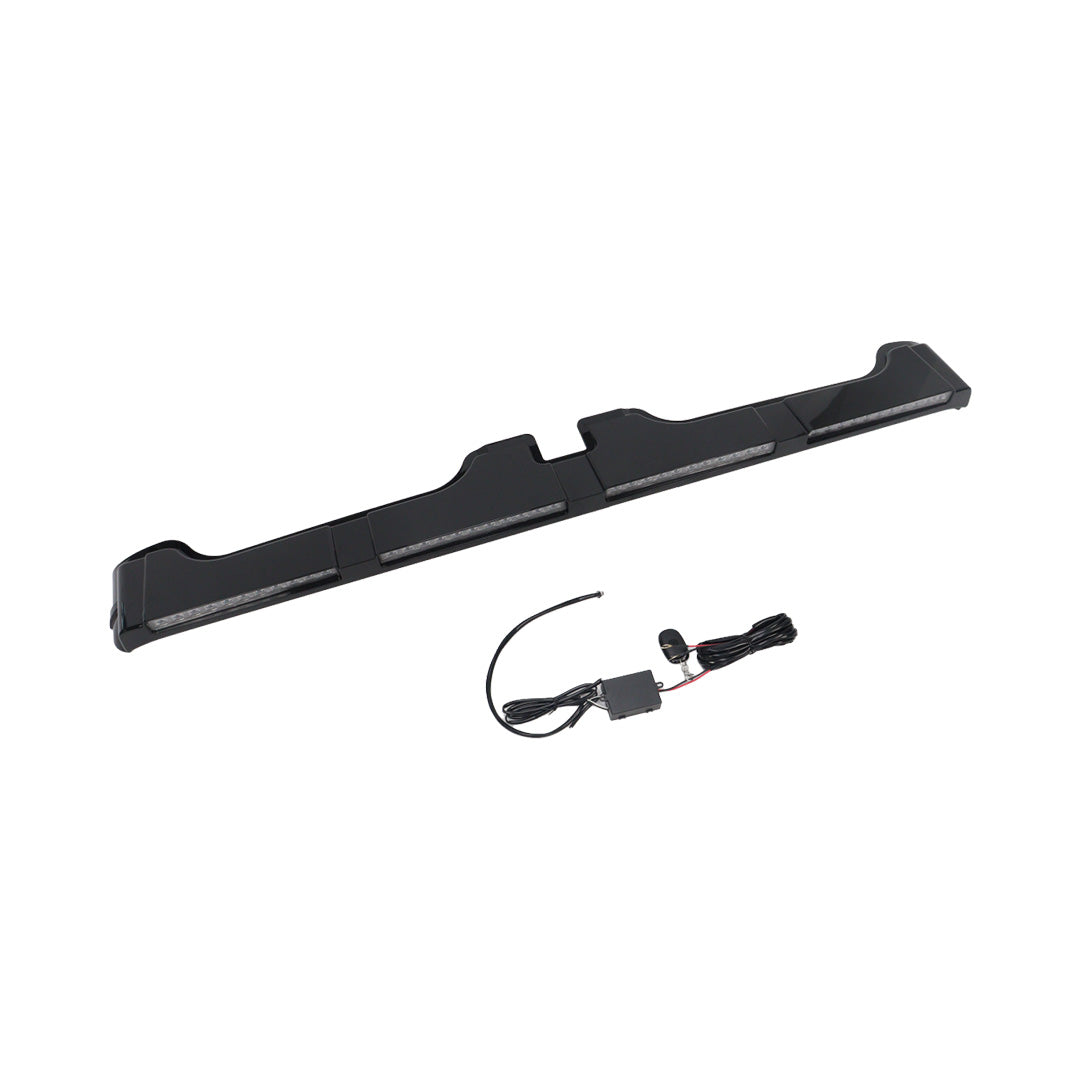

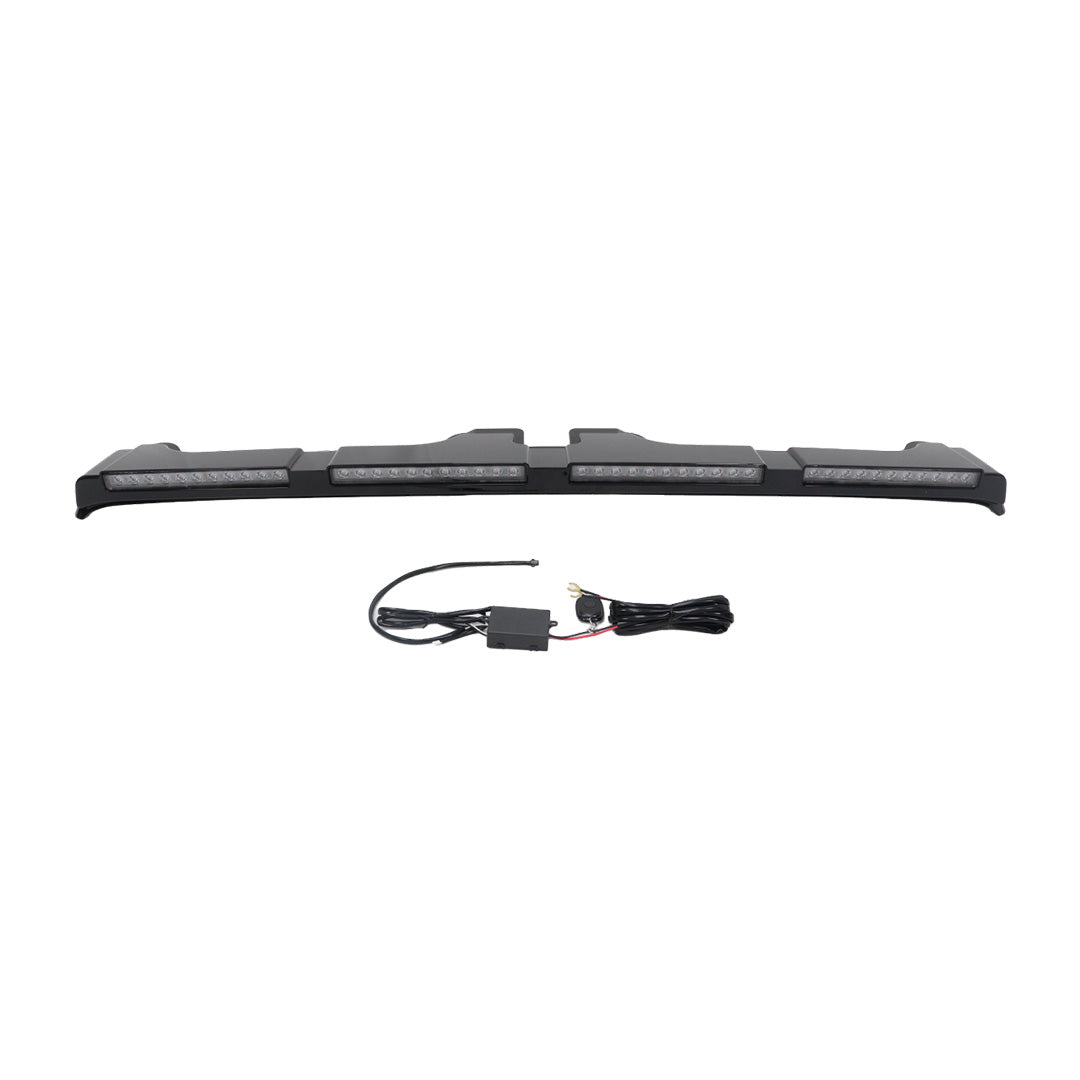

Off-road night travel and overland navigation require forward auxiliary illumination that extends beyond factory headlight reach. This 4-LED roof light bar integrates four high-output LED chips delivering 6,000 lumens inside an aerodynamic ABS housing molded to mount along the leading roof edge of the INEOS Grenadier without drilling.
WHY THIS UPGRADE MATTERS

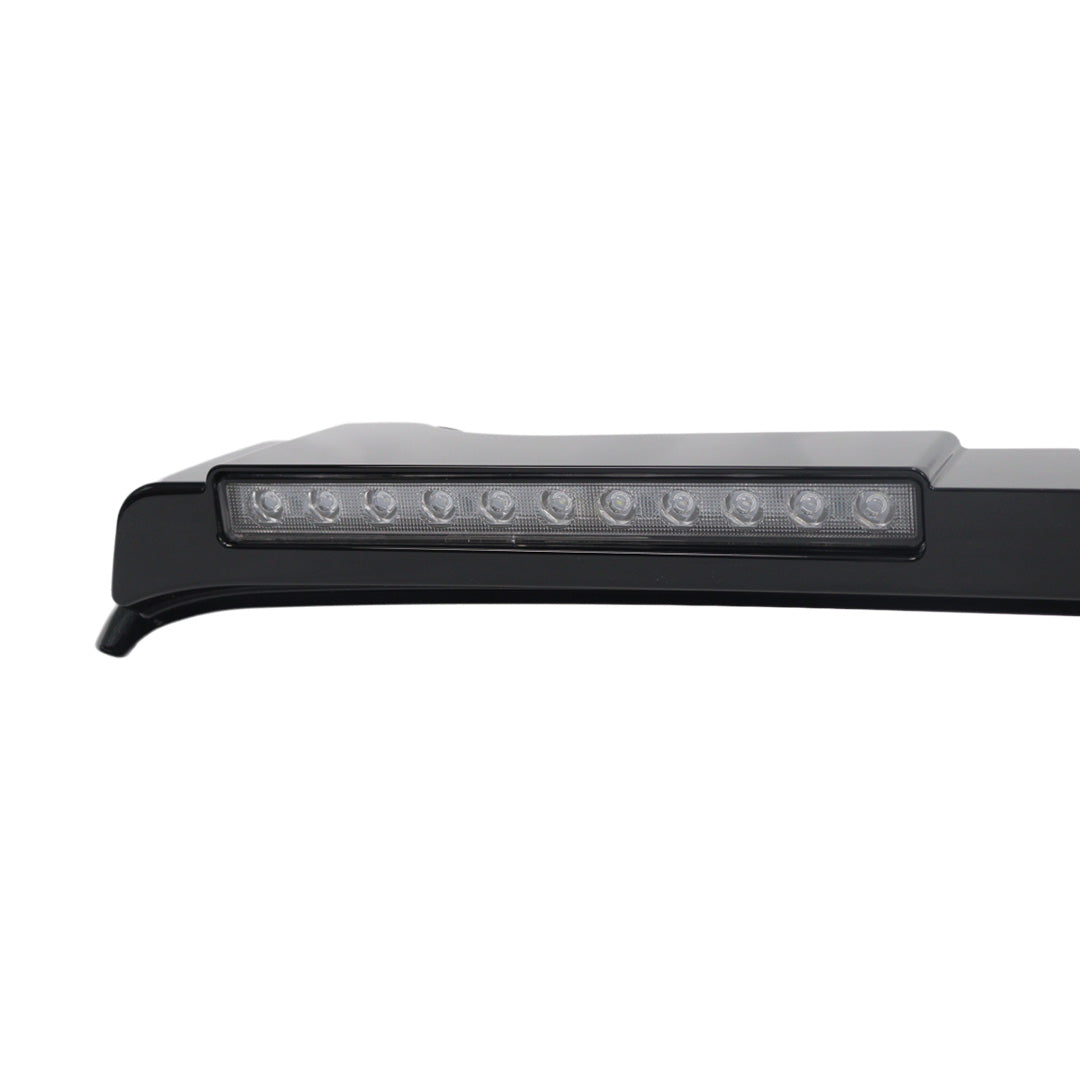

6,000 Lumens Forward Projection: Features four integrated high-efficiency LED chips providing auxiliary long-range trail illumination forward of the cab.
Aerodynamic Molded ABS Housing: Contoured to match the windshield header profile of the Grenadier, available in factory-matched Glossy Black or Scottish White finishes.
Non-Invasive 3M Surface Mounting: Attaches directly to the cleaned vehicle roof sheet metal using pre-applied automotive 3M adhesive tape and adhesion promoter, requiring zero holes, roof cutting, or chassis drilling.
Edition-Specific Wiring Architecture: Engineered with dual power routing paths, connecting directly to the factory exterior switched roof power port on Trialmaster models, or routing along the A-pillar/snorkel to the engine bay power terminals on Fieldmaster models.
Specifications
Product Type: Roof-mounted auxiliary LED light bar
Light Output: 6,000 lumens total

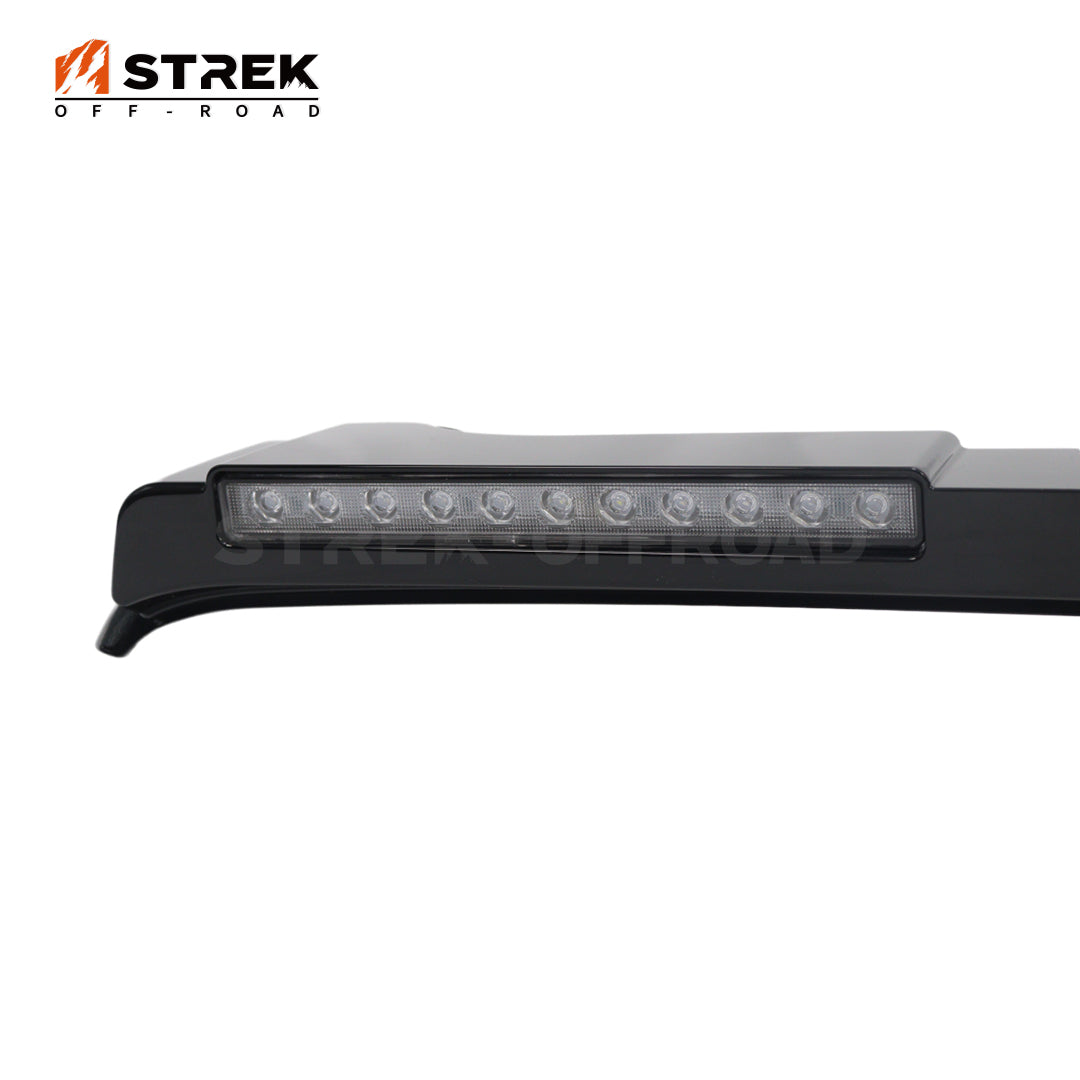

LED Configuration: 4 high-efficiency LED chips
Housing Material: Molded ABS plastic

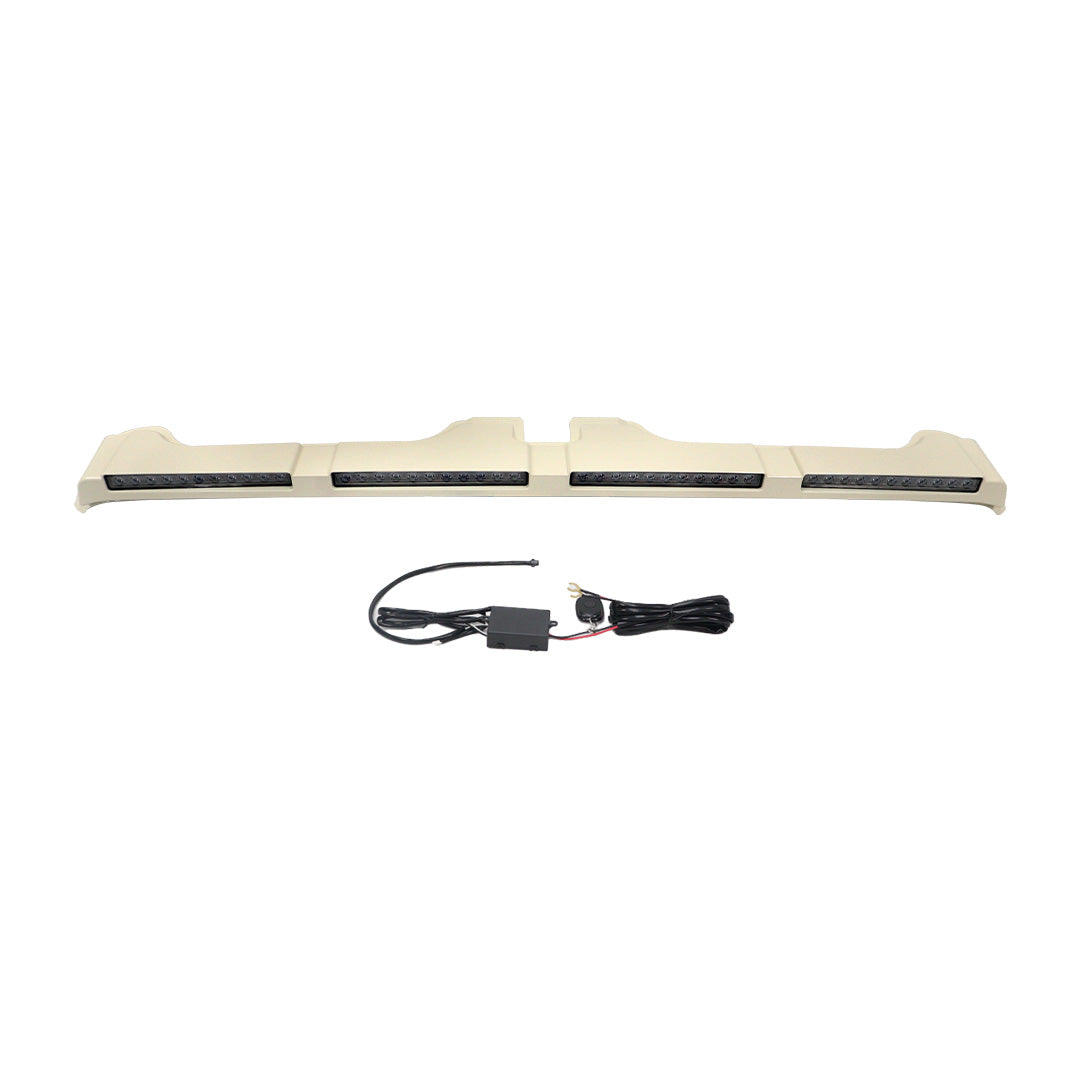

Color Options: Glossy Black / Scottish White
Mounting Type: Automotive 3M adhesive surface mount with adhesion promoter (no-drill)
Power Interface: Factory roof switched power connector (Trialmaster) / 12V engine bay terminal and chassis ground (Fieldmaster)
Compatibility: INEOS Grenadier Station Wagon and Quartermaster (2023–2026)
Installation & Compatibility Notes
Installation requires zero vehicle drilling or cutting. Clean the mounting surface on the roof panel with isopropyl alcohol and apply the included adhesion promoter. Place the 3M adhesive tape along the light bar mounting perimeter, align the light bar against the roofline above the windshield, and press firmly for at least 30 seconds.
The control module installs inside the hollow interior of the light bar housing using 3M tape. Connect internal harnesses B, C, D, and E to each corresponding LED pod, routing main harness A out through the side access groove.
-
Trialmaster Edition: Route harness A along the roof channel to the vehicle switched roof power connector, secure with zip ties, and close the factory weatherproof cover.
-
Fieldmaster Edition: Route harness A along the snorkel or A-pillar path into the engine compartment, securing the positive (red) wire to the 12V positive terminal and the negative (black) wire to a clean, unpainted chassis ground bolt.
Professional installation is recommended for electrical harness routing. Confirm Station Wagon or Quartermaster fitment before ordering if your vehicle configuration is not listed on this page.
Install Difficulty: 2/5
Estimated Install Time: 45–60 minutes

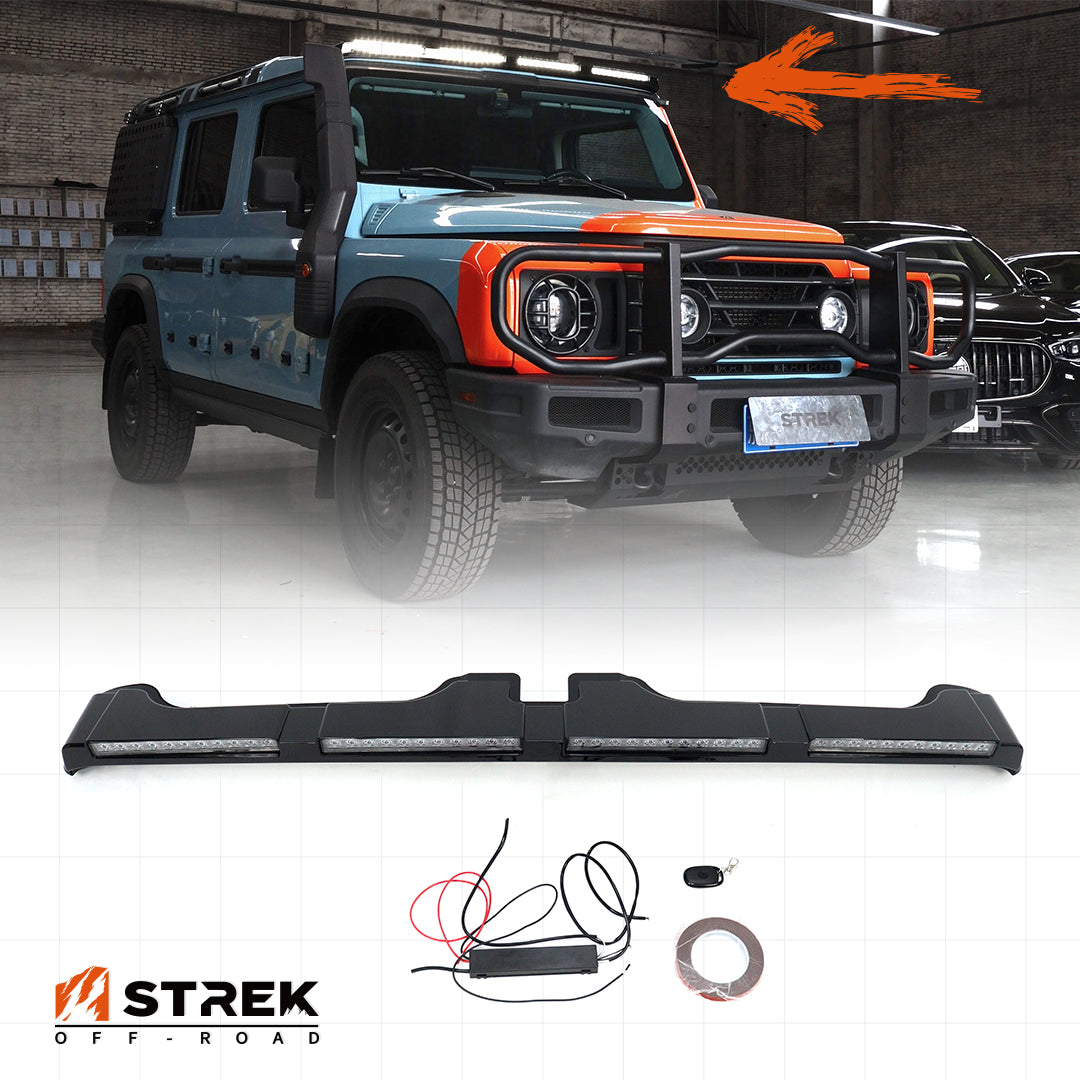

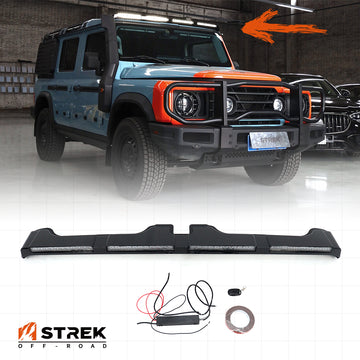

What is Included
-

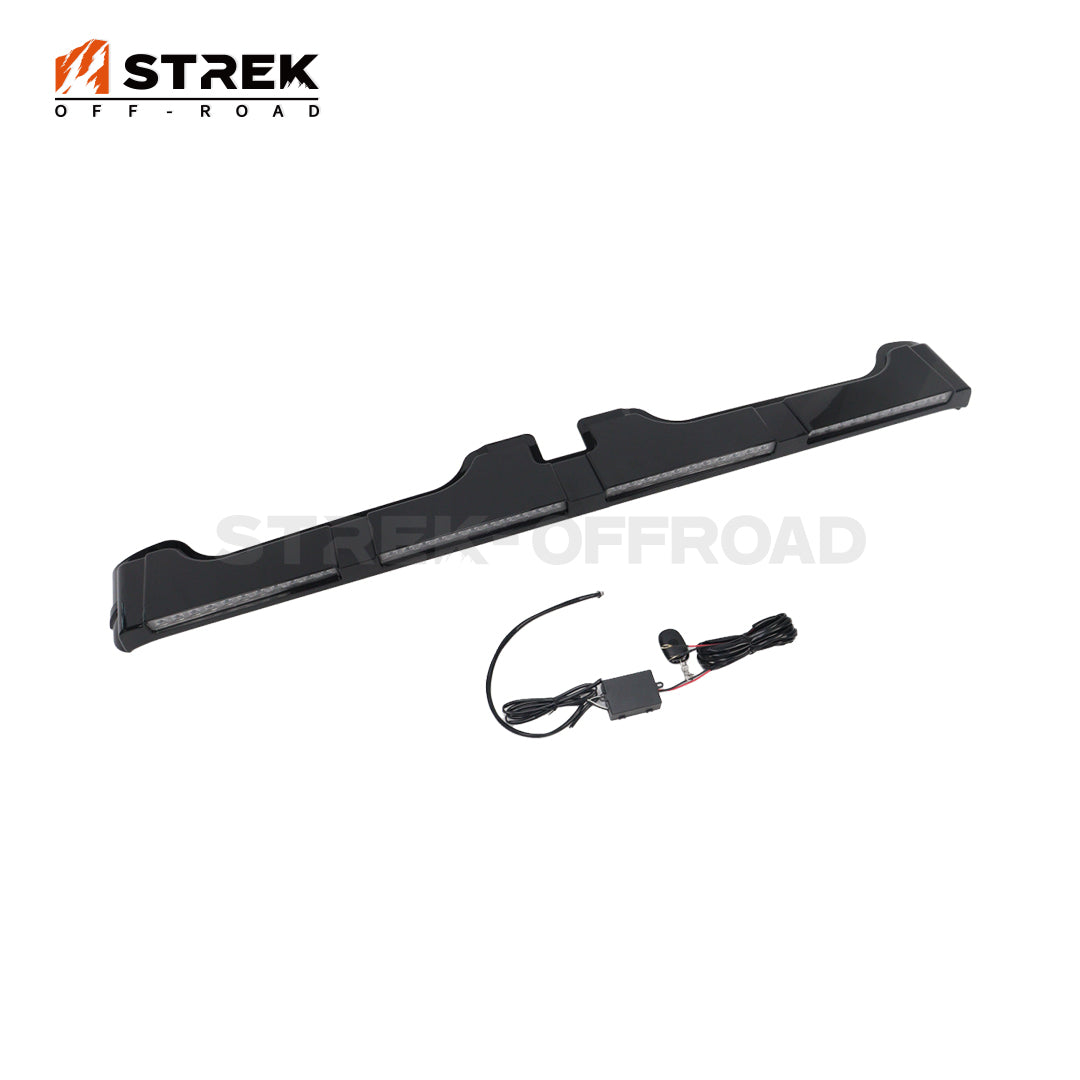

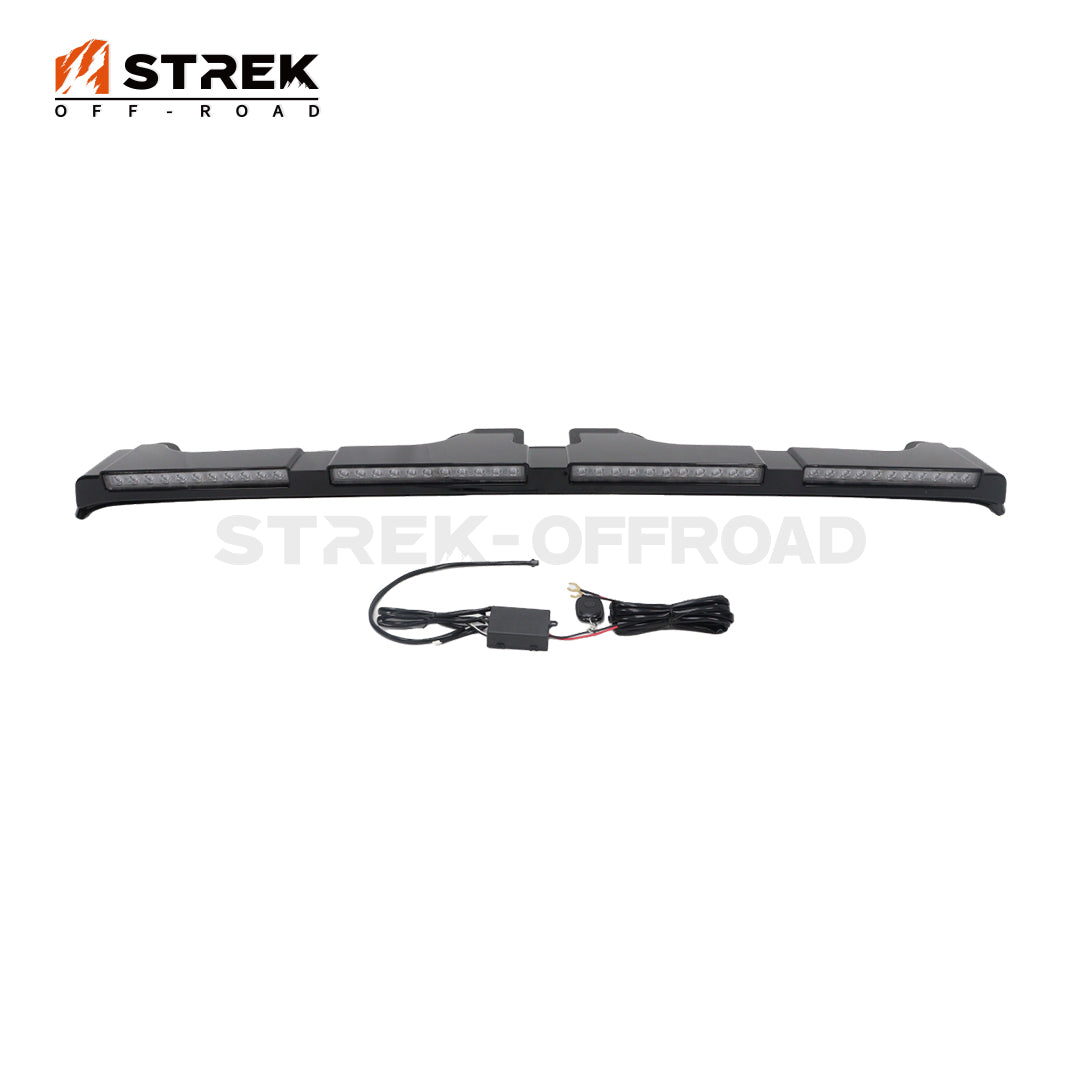

1x 4-LED roof light bar in molded ABS housing (Glossy Black or Scottish White)
-
1x Internal control module with multi-plug harness (Harnesses A–E)
-
1x Handheld wireless remote control
-
1x Roll of automotive-grade 3M adhesive mounting tape
-
1x Adhesion promoter pack
-
1x Installation instruction manual
Product FAQ
Q: What is the difference between Trialmaster and Fieldmaster installation?
Trialmaster models utilize the factory exterior switched roof power port, allowing direct connection at the roofline. Fieldmaster models without the pre-wired roof port require routing the power harness along the A-pillar or snorkel into the engine compartment to attach to the 12V positive terminal and chassis ground.
Q: Why does the packaging include two control options, and can they be used simultaneously?
The kit supports both wireless remote switching and hardwired in-cabin switch integration depending on user wiring preference. Connect only one control method to the circuit; the system does not support wiring both modules in series.
Q: Which housing color matches my vehicle?
The housing is offered in Glossy Black for dark paint finishes or contrast styling, and Scottish White to align with factory white roofs and paint finishes.
Installation Guide
📄 Need step-by-step instructions?
See The Lighting Performance
Watch the video to see the brightness and lighting coverage of the 4 LED roof light bar in action.
