Twin Drawer System for INEOS Grenadier Station Wagon

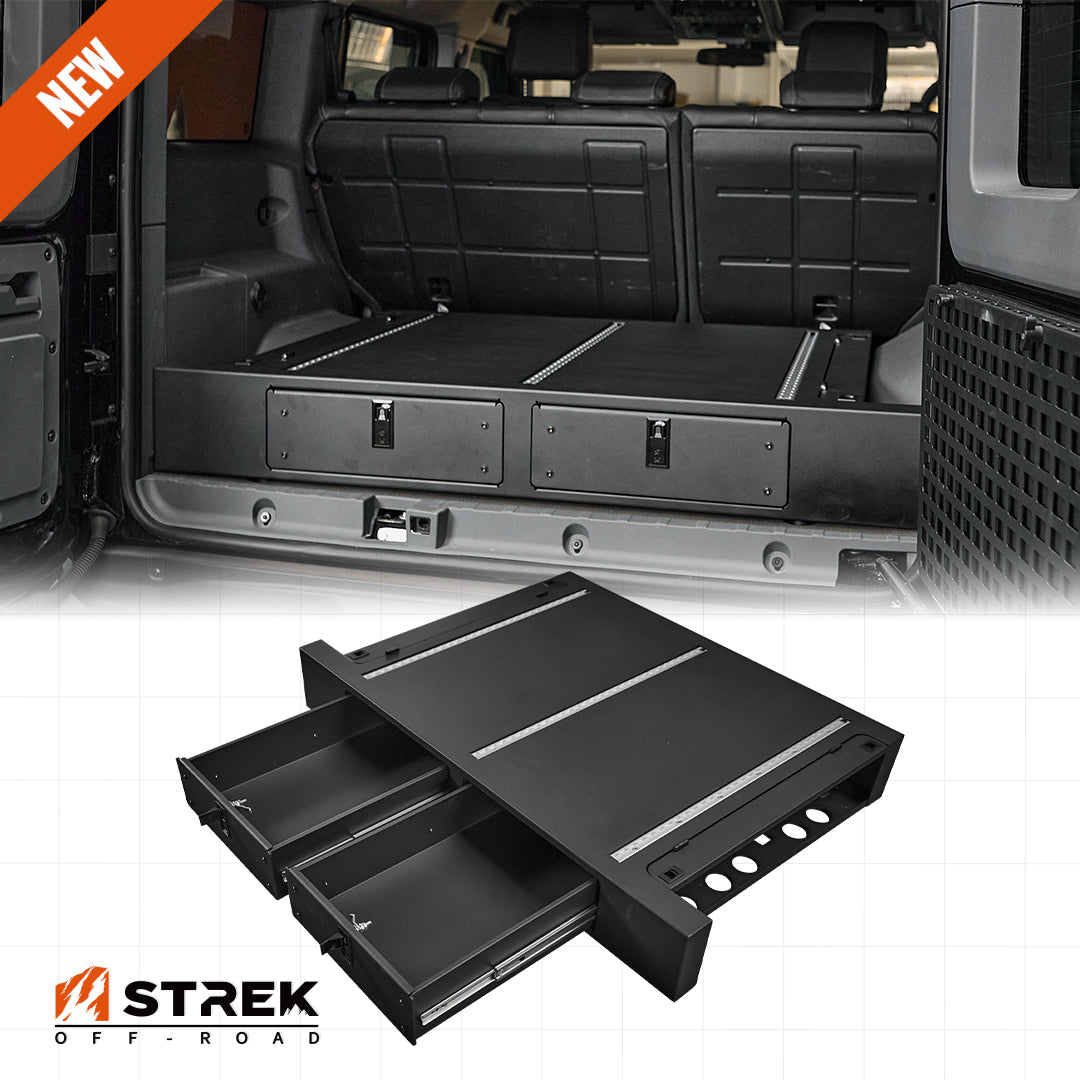

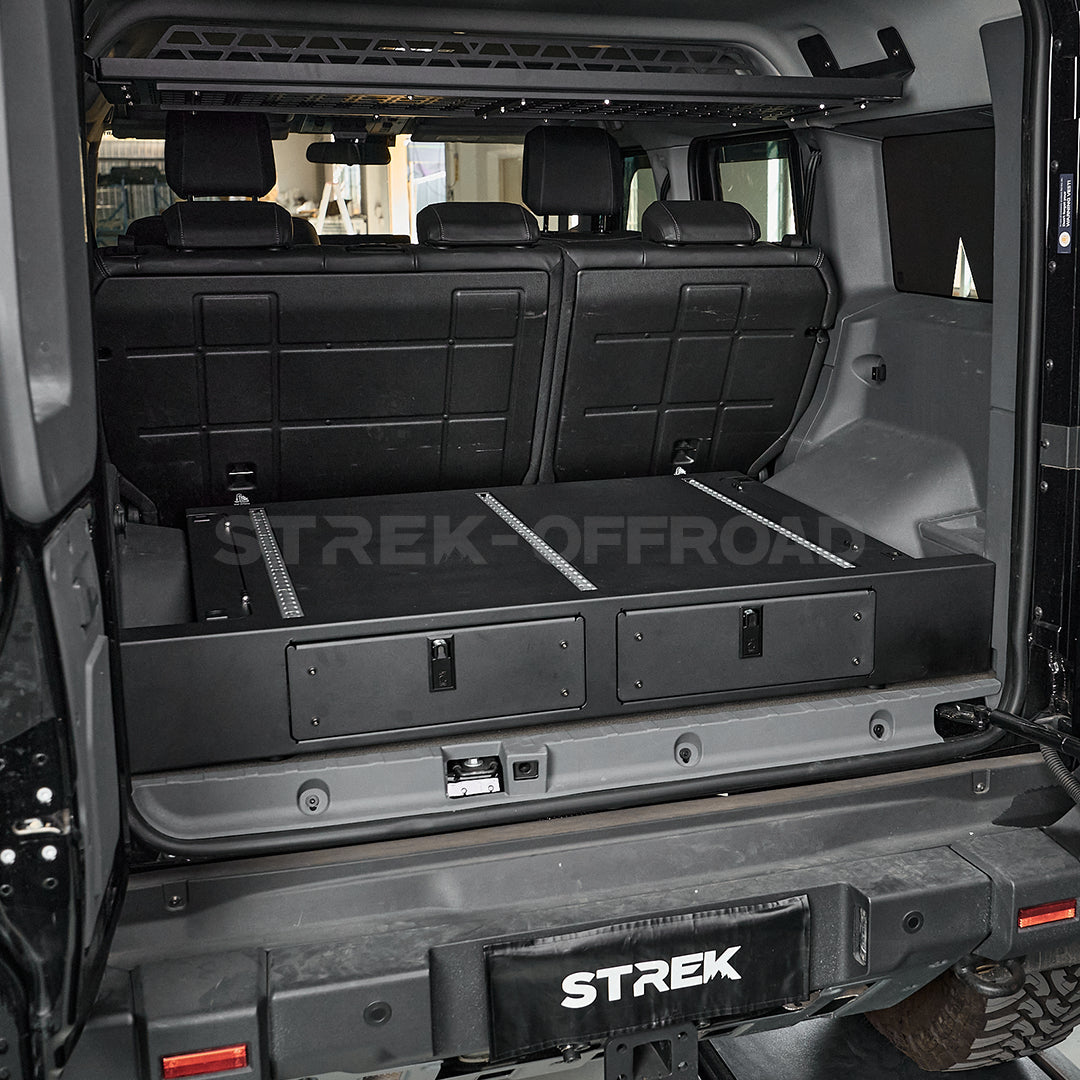

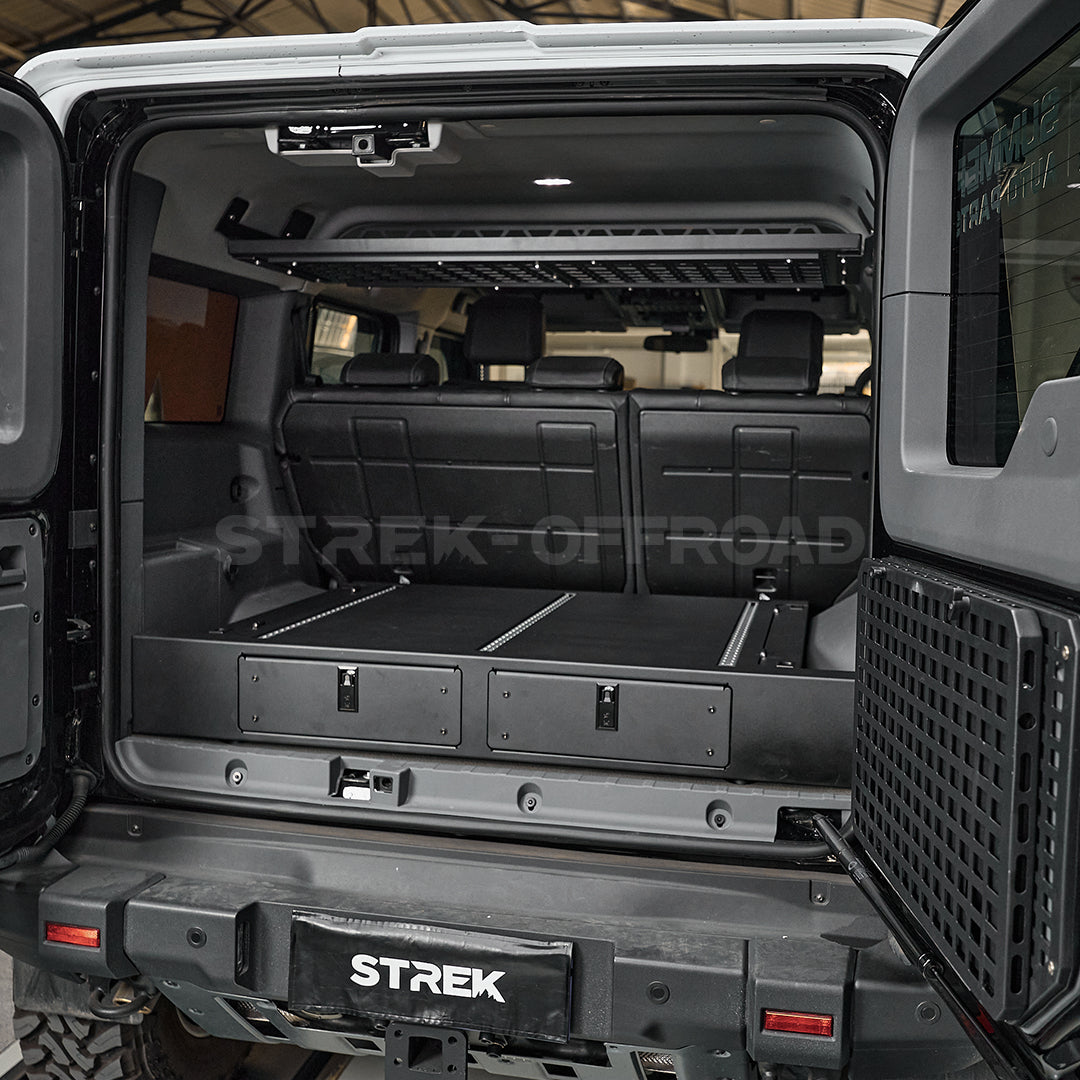

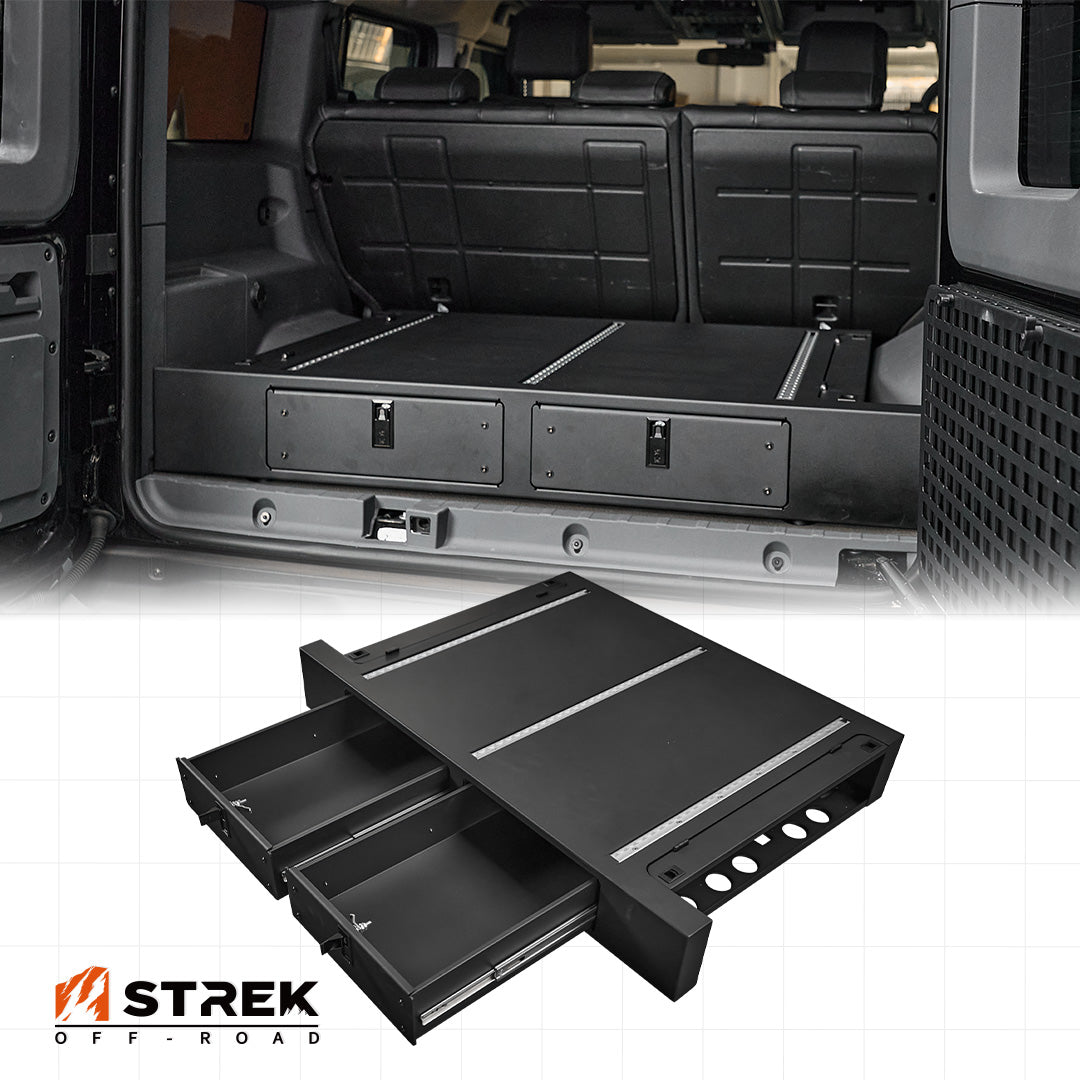

The cargo floor of the INEOS Grenadier Station Wagon sits at a lower level than the folded second-row seatbacks, creating an uneven stepped drop that disrupts gear organization and vehicle sleeping setups. This 64L metal twin drawer system mounts directly to factory cargo anchor points, leveling the trunk space with the folded rear seats to form a continuous, flat load deck and sleeping platform.

WHY THIS UPGRADE MATTERS

Continuous Flat Deck Platform: Matches the exact height of fully folded second-row seats (with seat cushions flipped forward and headrests detached), creating an unbroken flat surface for cargo cases or a camping mattress.

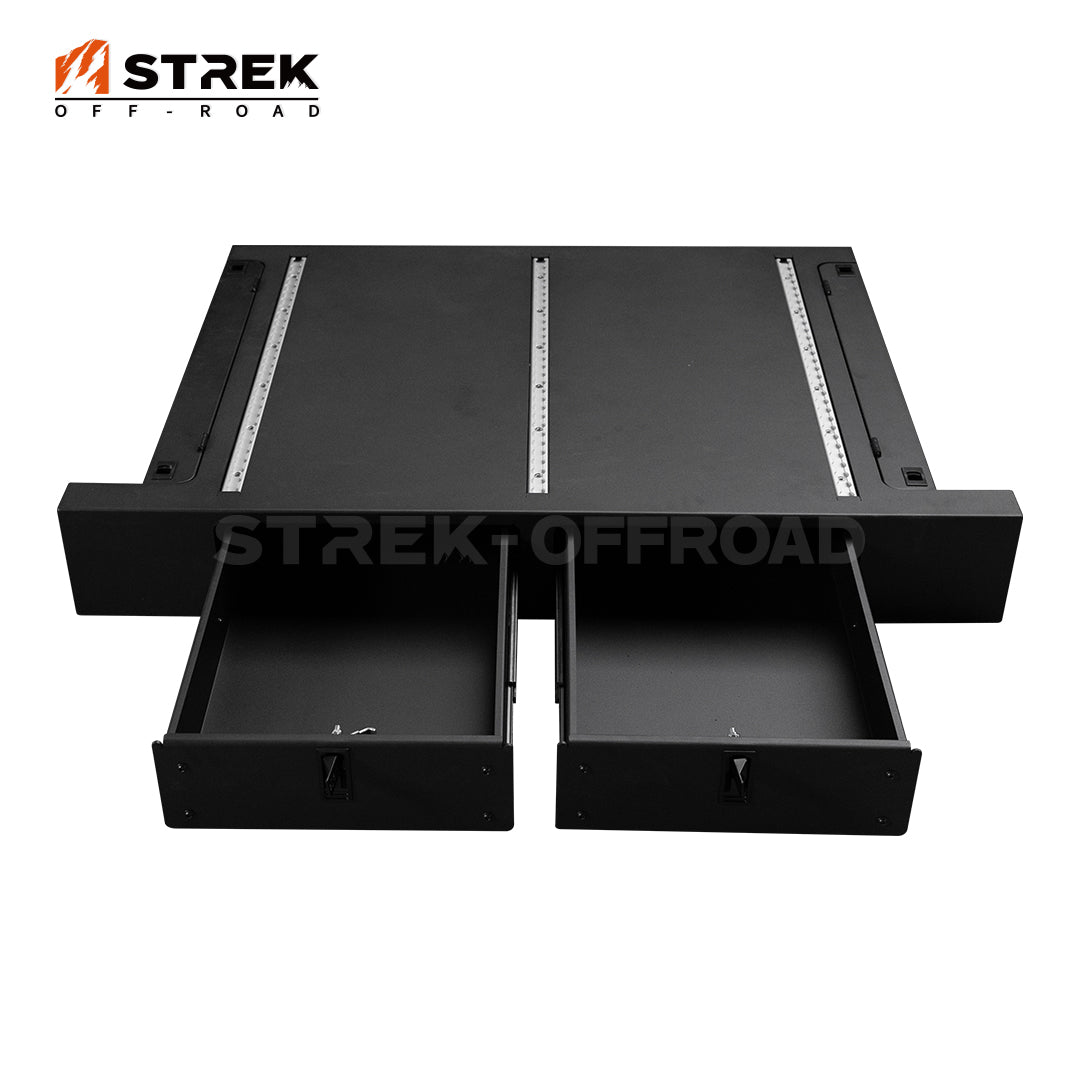

Integrated Top L-Track Tie-Downs: Outfitted with three longitudinal aviation-style L-tracks across the top surface, providing adjustable lashing anchor points to secure cargo boxes and equipment.

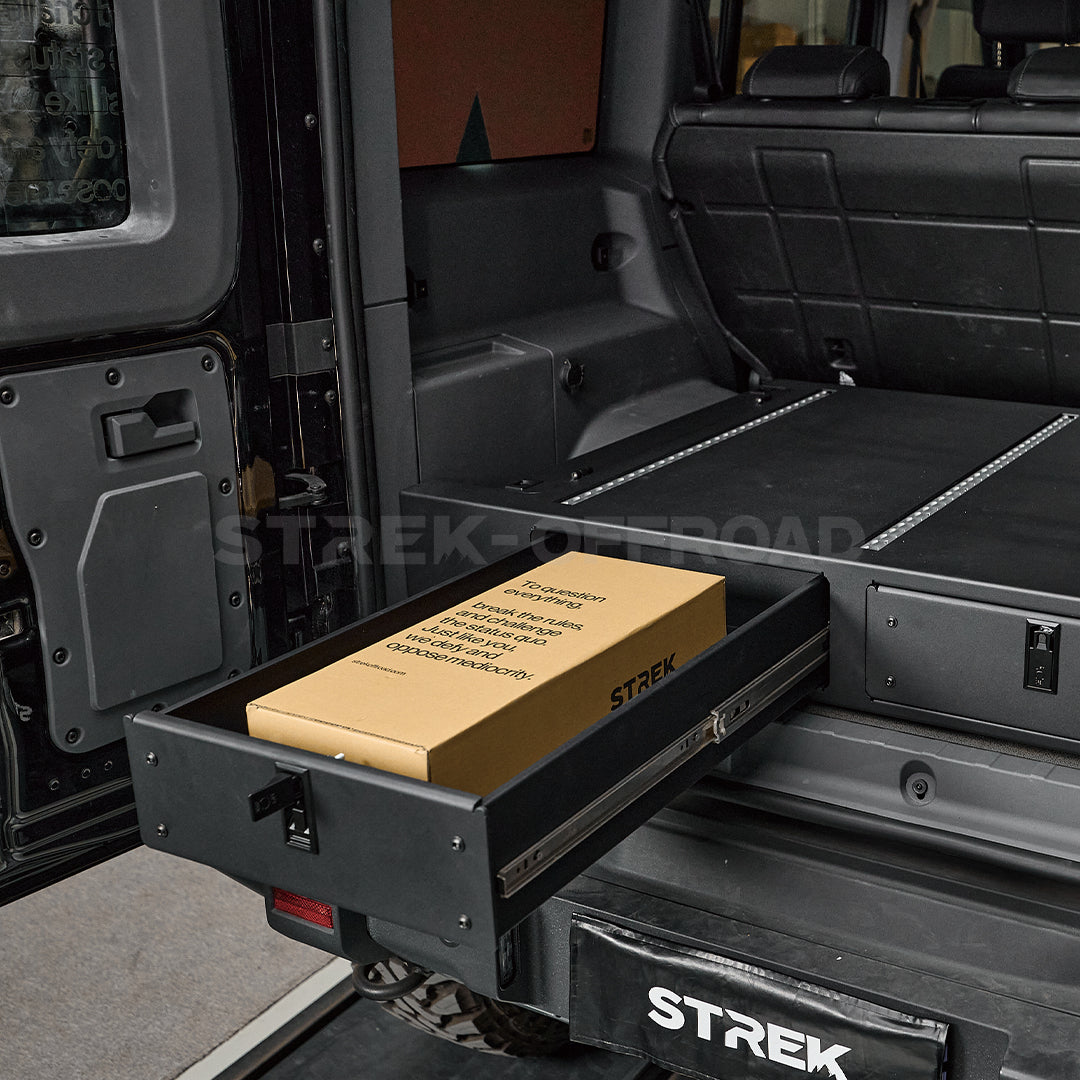

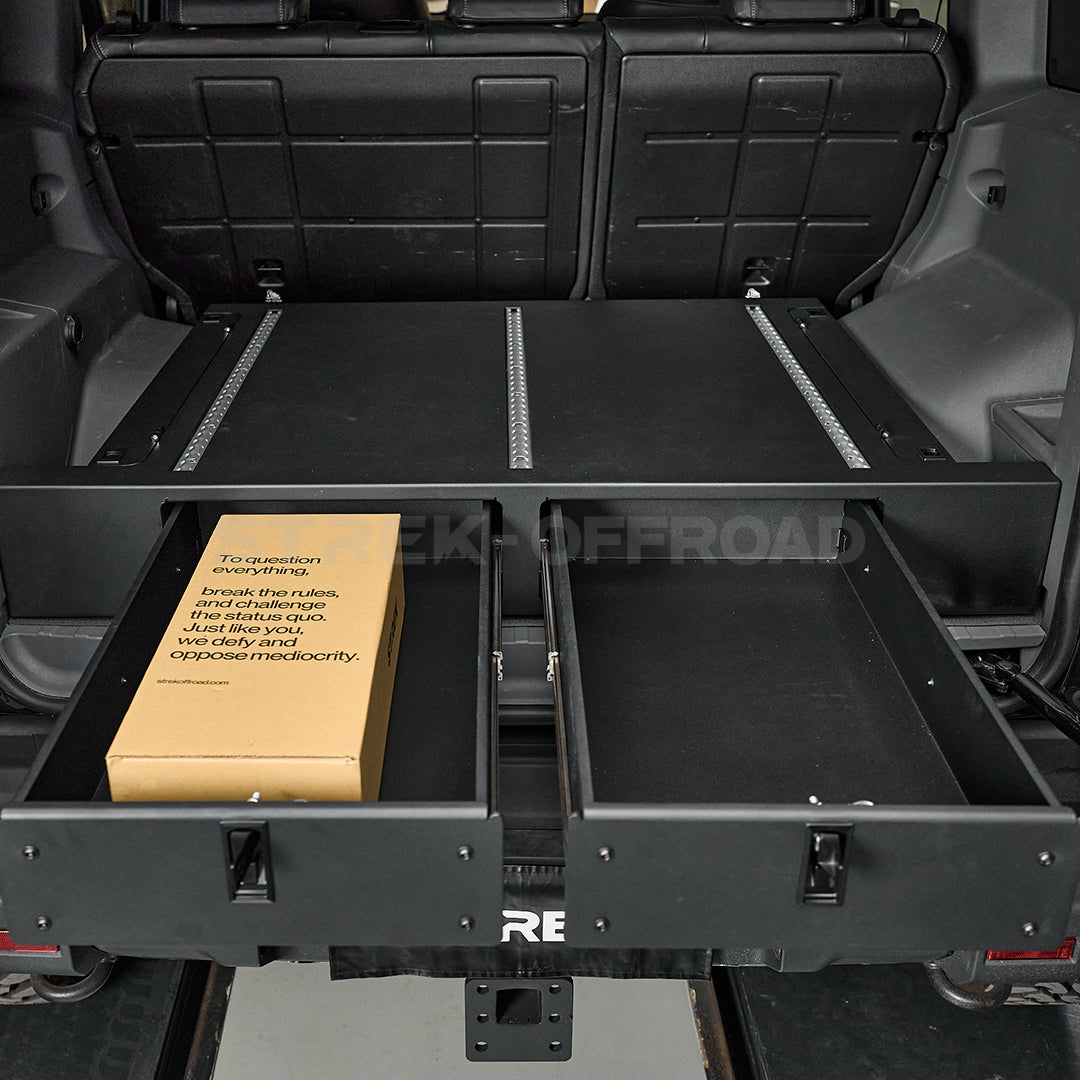

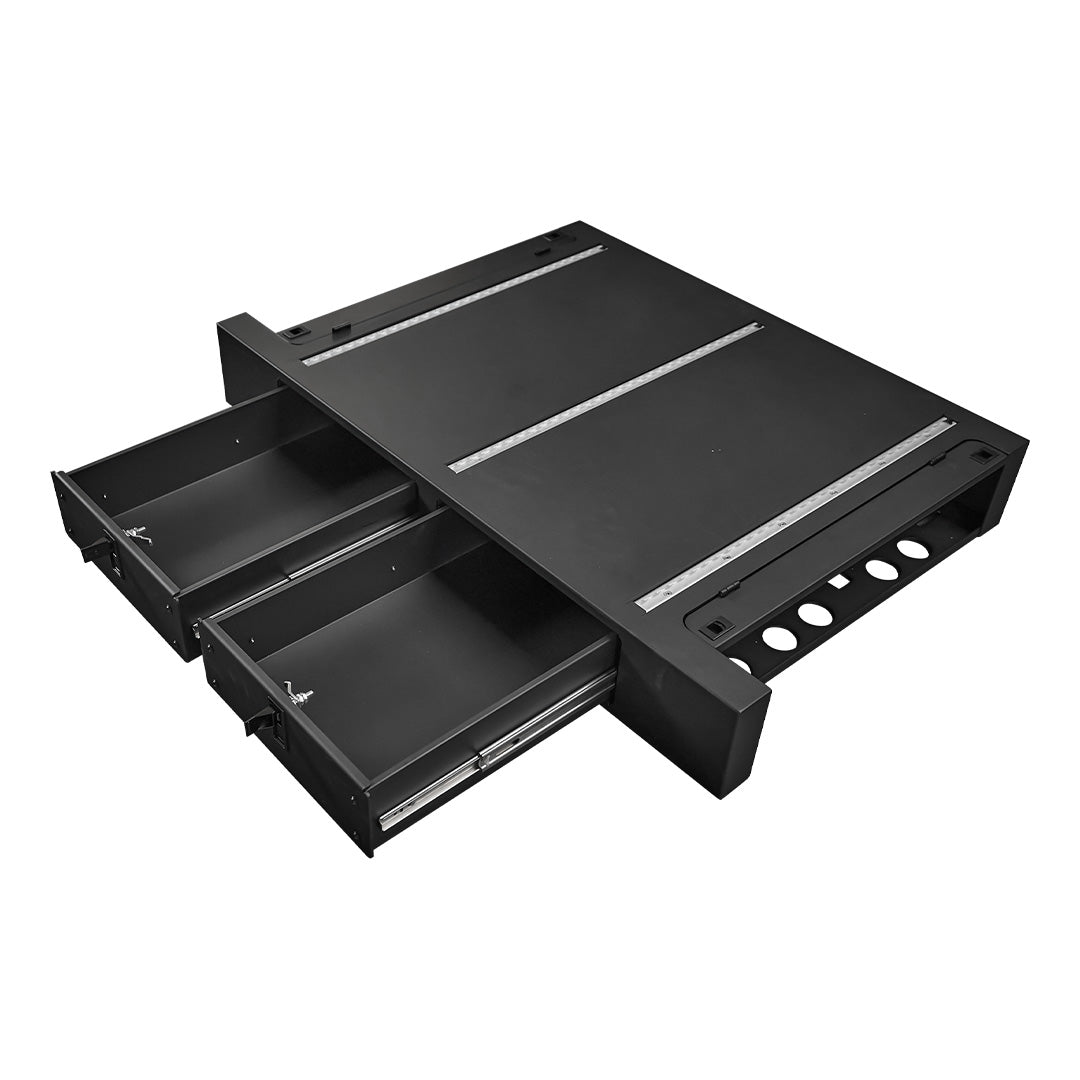

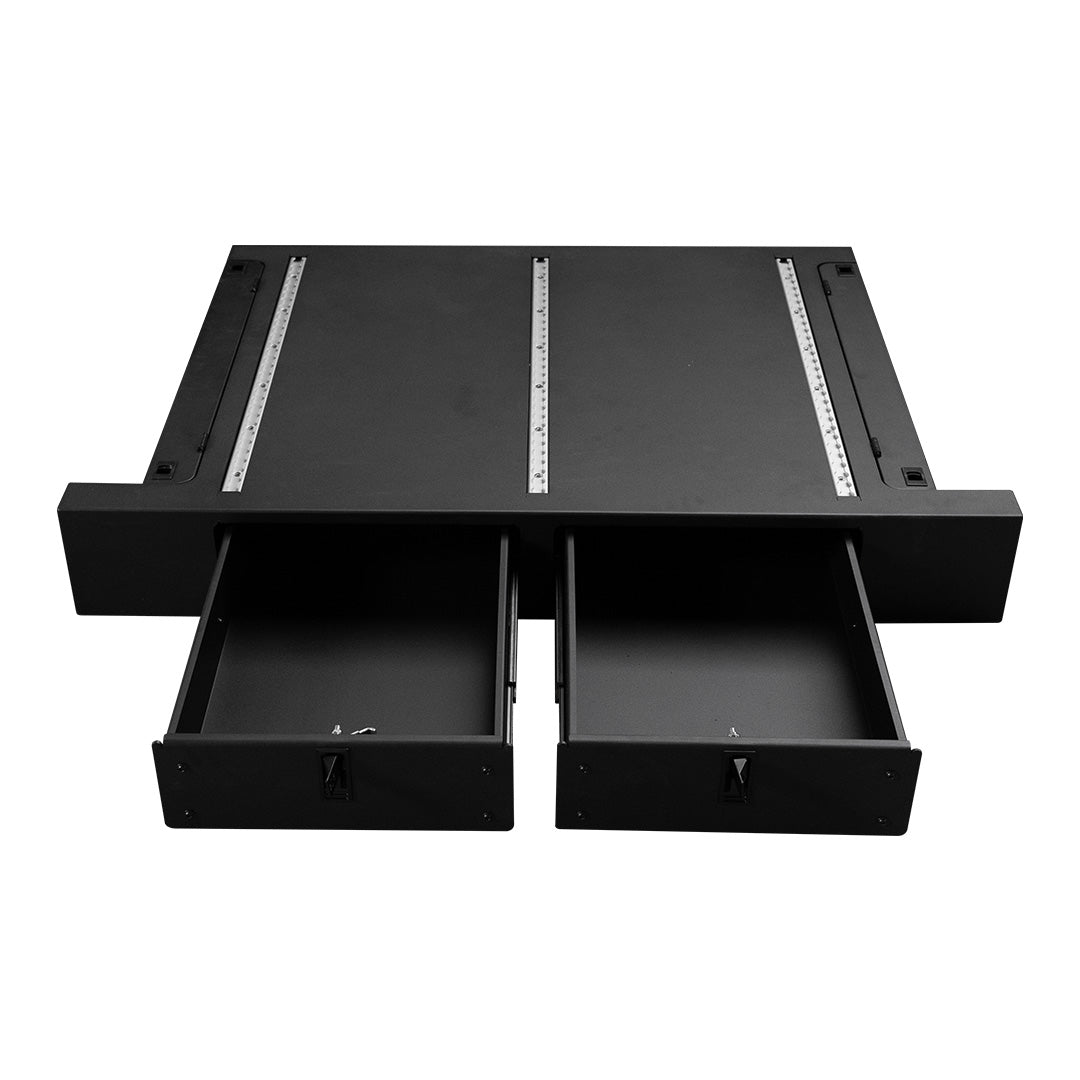

Independent Slide Access Under Load: Each drawer operates on smooth-glide metal slides, allowing either drawer to open independently out the rear doors while luggage or a sleeper is positioned on top.

Hinged Side Wing Storage: Features lockable side panels over both wheel arches that enclose dead space, provide internal access to underbody mounting bolts, and create side-to-side cargo containment.

Specifications

Product Type: Modular twin cargo drawer storage system

Storage Capacity: 64 Liters

Internal Drawer Height: 12.35 cm

Material: Coated sheet metal

Finish: Black protective coating

Top Anchoring: 3x Integrated longitudinal L-tracks

Mounting Type: Direct bolt-on to factory floor fastener holes

Compatibility: INEOS Grenadier Station Wagon (2023–2026)

Installation & Compatibility Notes

Mounting utilizes existing threaded vehicle floor locations without requiring chassis drilling or body cutting.

Vehicles without factory floor tracks: Remove the 4 corner plastic end caps on the cargo floor using a screwdriver to expose the factory threaded points.

Vehicles equipped with factory floor tracks: Remove the mounting screws from both ends of the factory floor rails.

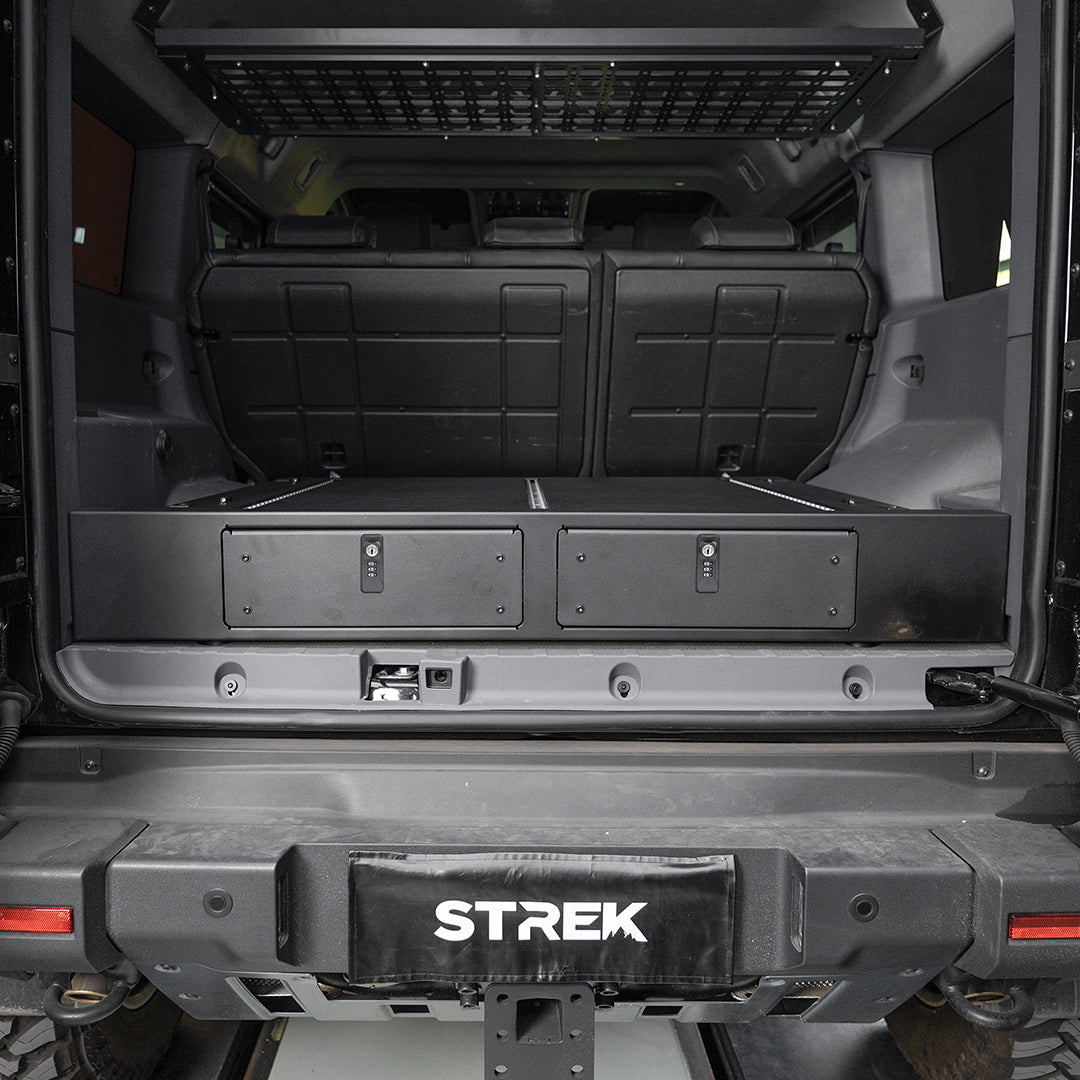

Position the drawer unit into the rear cargo compartment, align the base mounting slots over the exposed factory floor threaded holes, open the hinged side wing covers, insert the mounting bolts through the internal access ports, and torque down with hand tools.

This unit is engineered specifically for the INEOS Grenadier Station Wagon (2023–2026).

Install Difficulty: 2/5

Estimated Install Time: 30–45 minutes

Product FAQ

Q: What is the internal height clearance inside each drawer?

The internal drawer clearance measures 12.35 cm in vertical height, accommodating gear boxes, recovery gear, trail tools, and camp kitchen accessories.

Q: How does this drawer system create a flat sleeping surface?

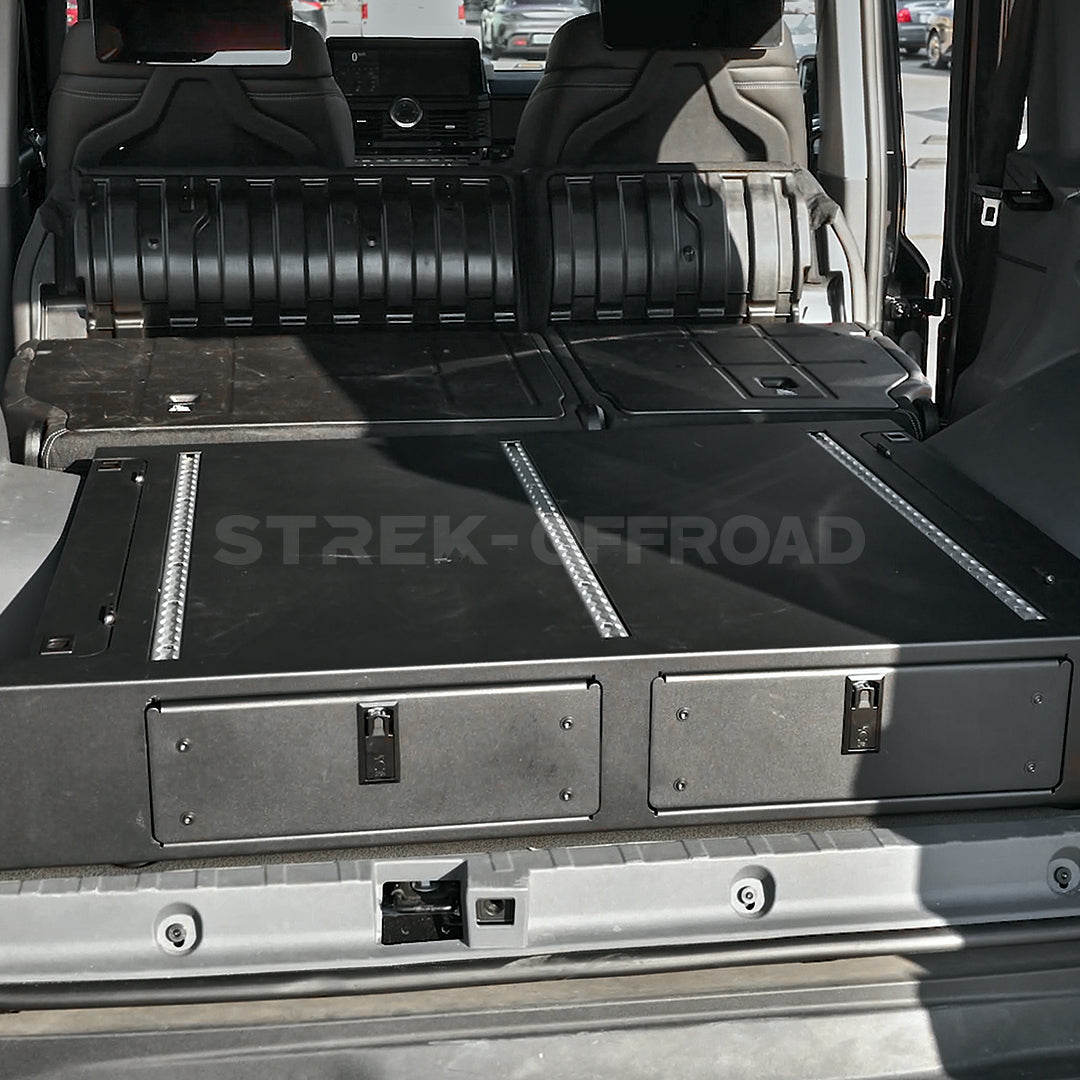

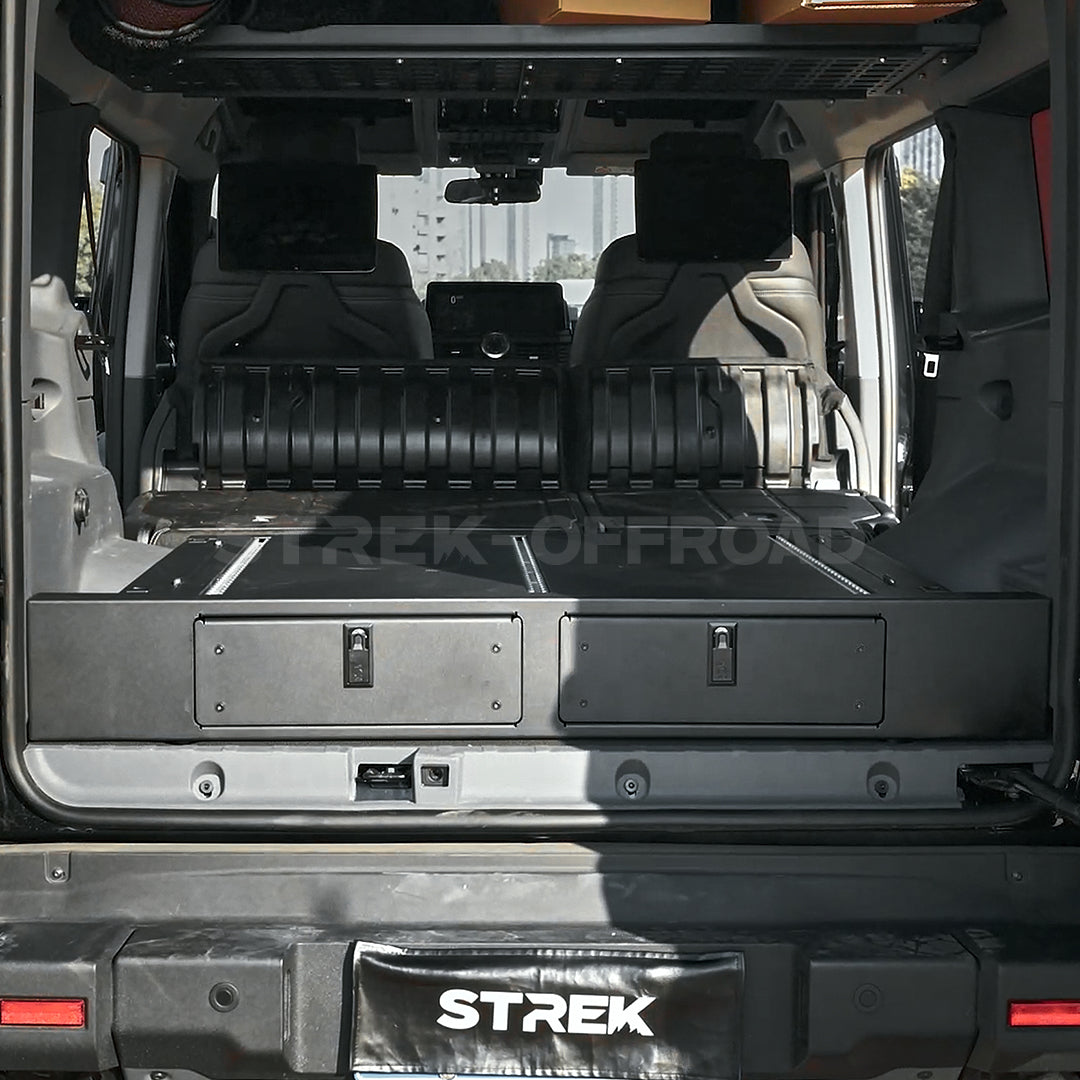

When the Station Wagon rear seat cushions are flipped forward, the headrests removed, and the seatbacks folded flat, the top deck of the drawer system aligns at the same plane as the seatback surface. This creates a level horizontal platform from the front seatbacks to the rear barn doors. For a complete sleeping setup, pair with the Grenadier Sleeping Mattress — Split Flat Bed.

Q: Does installation require drilling into the vehicle floor?

Mounting aligns with factory threaded holes beneath the rear cargo floor end caps or factory track ends, requiring zero body cutting, drilling, or frame modification.

Q: What is the difference between the two lock options?

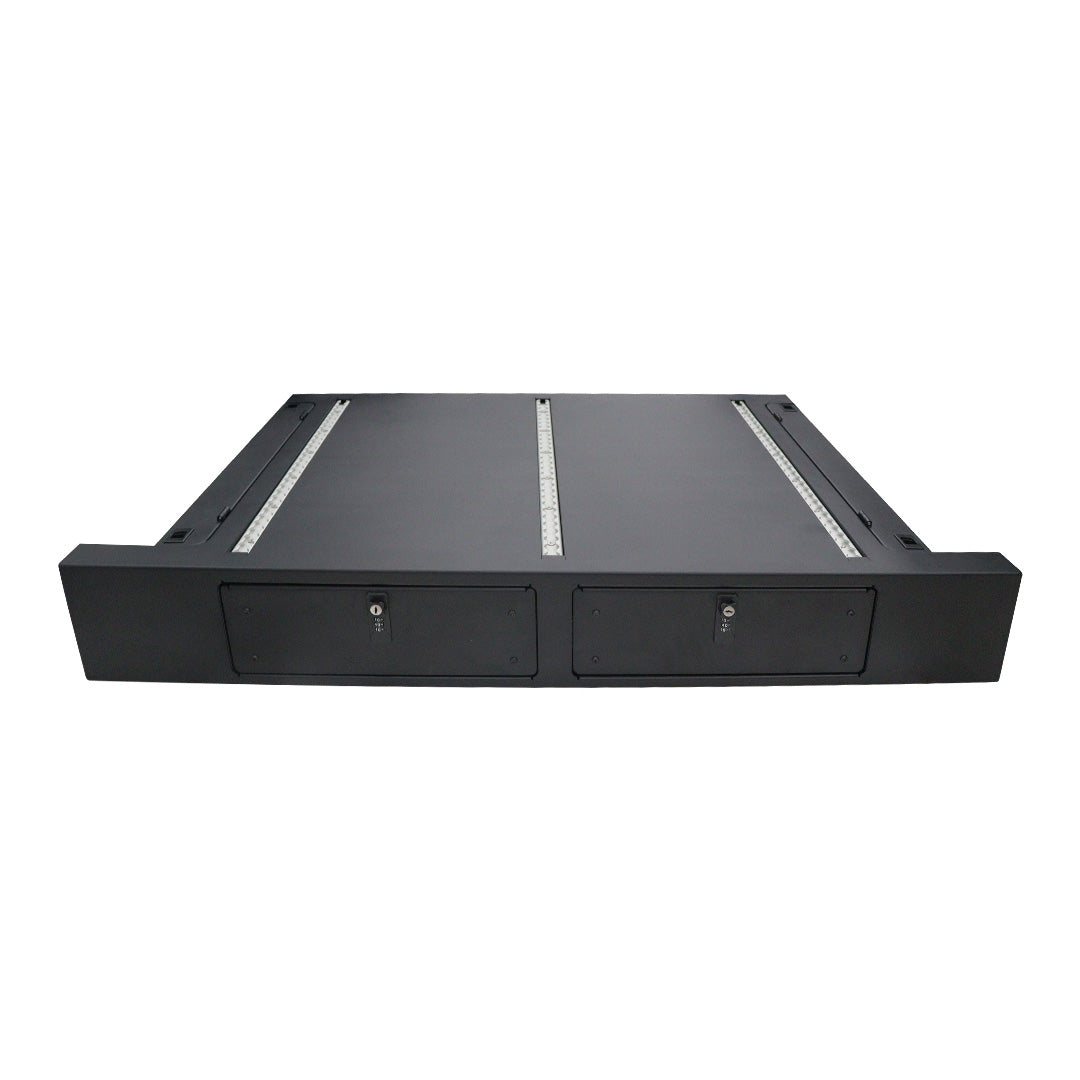

The 3-digit combination cam lock provides dual-access security using a mechanical scroll-wheel code paired with an emergency master override key. The flush pull latch provides tool-free quick access with a recessed handle that flips up to release and sits flush when closed.
